TAG Standard Duty Towbar & Universal Wiring Kit (T2M479-K301)
This TAG Standard Duty Towbar and Universal Wiring Harness Kit (T2M479-K301) is engineered to fit the Mazda 3 Hatchback (BK Series) from 06/2003 to 04/2009. This towbar is rated as Standard Duty (Class 2) and provides a maximum Towing Capacity of 900kg and a Ball Weight of 75kg. Please note: This towbar is specifically designed for standard models and is not suitable for the Mazda 3 SP or MPS high-performance variants. The towbar is concealed when fitted, and installation requires both bumper removal and a bumper cut-out. The kit comes complete with a Universal Wiring Harness and a 7 Pin Flat Socket.
This Kit Includes:
- TAG Standard Duty Towbar (T2M479)

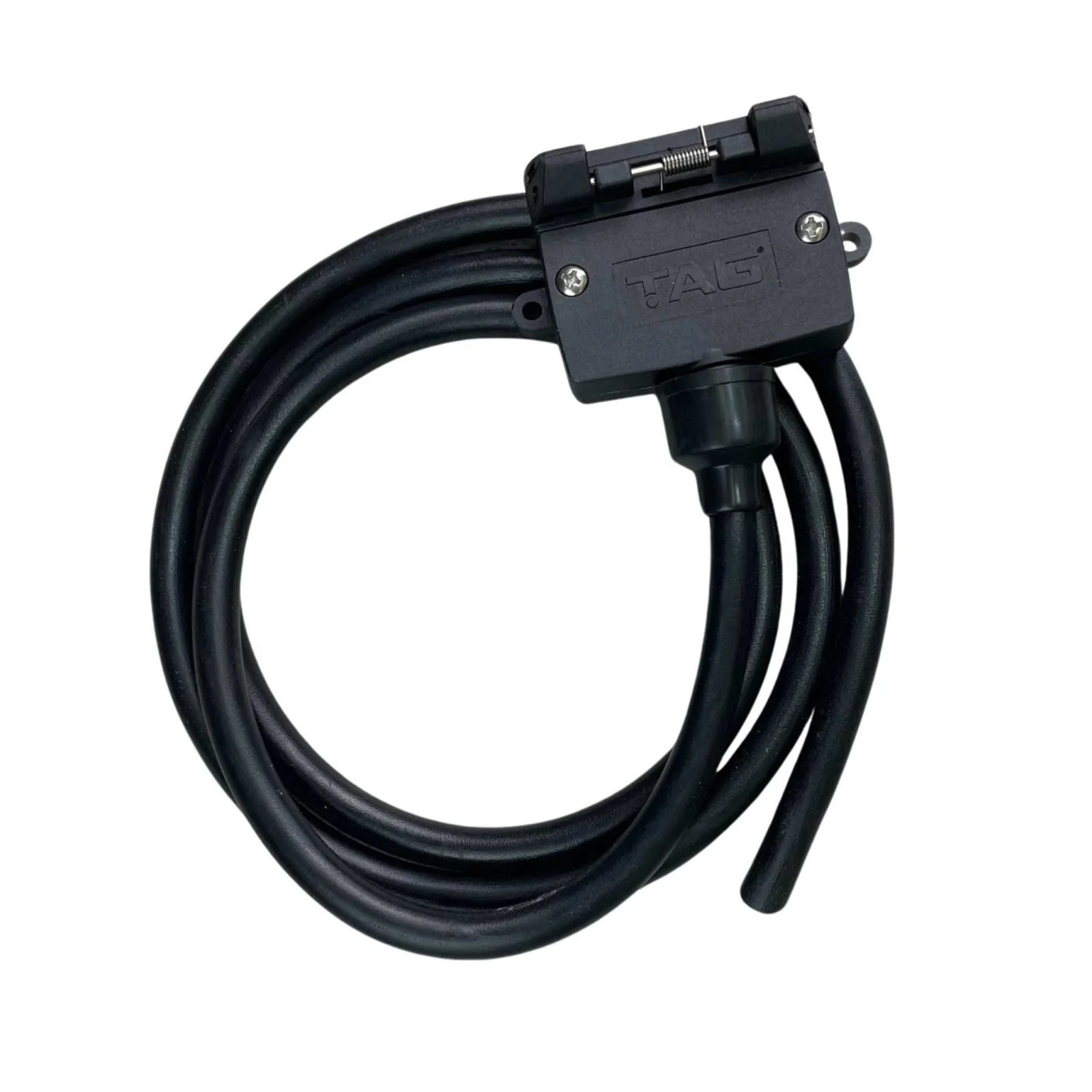

- TAG Universal Wiring Harness with 7 Pin Flat Socket vehicle side
TAG Standard Duty Towbars are designed and manufactured in Australia and feature:
- Factory Mounting Points for ease of fitment
- Durable Powder Coated Finish
- Flat Fixed 2-Bolt Tow Ball Mount (L201C)
- TAG Limited Lifetime Warranty
- Towbar includes Tow Ball
Specifications:
- Towbar Class: Standard Duty (Class 2)
- Towbar Capacity [kg]: 900
- Ball Weight [kg]: 75
- Hitch Type: Flat Fixed 2 Bolt
- Tow Ball Mount: L201C
- Wiring Option: Universal Wiring Harness
- Plug Connection: 7 Pin Flat Socket
- Fitting Time Approx: 2 hr (120 min)
- Coating: Enamel Immersion Dipped
- Bumper Removed During Fitment: Yes
- Bumper Cut Out Required: Yes
- Exposure: Concealed
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications (Full Details)
| Make | Model | Year Start - Year End | Body Type | Engine Details | Drivetrain | Trim Level |
|---|---|---|---|---|---|---|
| MAZDA | 3 | 07/2006 - 04/2009 | Hatchback | 2.0L Petrol (LF-DE, LF-VE, etc.) | FWD | BK (BKEP) (Excl. SP23, MPS) |
| MAZDA | 3 | 07/2006 - 04/2009 | Hatchback | 2.0L Diesel (RF7J, RF8G) | FWD | BK (BK14) MZR-CD |
| MAZDA | 3 | 01/2003 - 01/2009 | Hatchback | 2.0L Petrol (LFDE) | Automatic/Manual FWD | BK (Excl. SP23, MPS) |
| MAZDA | 3 | 10/2003 - 06/2006 | Hatchback | 2.0L Petrol (LF-DE, LF72) | FWD | BK (BK10F, BKEP) (Excl. SP23, MPS) |
